How Is a Rifle Barrel Made

Ever pondered the magic behind a rifle’s accuracy? Learning how is a rifle barrel made reveals a fascinating journey of precision engineering. From selecting specialized steel to intricate drilling, rifling, and meticulous finishing, each step ensures peak performance and consistent accuracy, turning raw material into a finely tuned instrument. It’s a blend of art and science, demanding extreme care and expertise to achieve the reliability and precision shooters expect.

Have you ever held a rifle, felt its solid weight, and marveled at its potential for incredible accuracy? It’s a tool designed for precision, often capable of placing a projectile exactly where you intend, even at great distances. But have you ever stopped to think about the heart of that accuracy? The barrel.

The rifle barrel is more than just a metal tube. It’s a marvel of engineering, a component where even microscopic imperfections can significantly impact performance. Achieving that straightness, that perfectly uniform bore, and those precise internal grooves (rifling) is no simple feat. It requires an incredible blend of material science, advanced machining techniques, and meticulous craftsmanship.

So, how is a rifle barrel made? What kind of magic goes into transforming a solid piece of steel into such a critical, high-performance part? Get ready to explore a fascinating journey, step by step, from raw materials to the finished product. We’ll uncover the secrets behind one of the most vital components in any firearm, demystifying the intricate process of how is a rifle barrel made.

Key Takeaways

• Steel Selection is Paramount: The journey of making a rifle barrel begins with choosing high-quality, specialized steel like 4140, 4150, or 416R stainless, critical for durability, heat resistance, and consistent accuracy.
• Deep Hole Drilling Demands Precision: Creating a perfectly straight and concentric bore through a long steel blank requires highly specialized “gun drilling” techniques, followed by reaming and honing for a flawless internal surface.
• Rifling Imparts Bullet Spin: The internal grooves (rifling) are essential for stabilizing a bullet in flight. Three primary methods – button rifling, cut rifling, and hammer forging – each offer unique advantages in creating these vital twists.
• Chambering Ensures Cartridge Fit: A precisely machined chamber allows the cartridge to seat perfectly and consistently, which is fundamental for reliable feeding, extraction, and shot-to-shot accuracy.
• Stress Relieving Stabilizes the Barrel: Heat treating the barrel to relieve internal stresses is a crucial step. It prevents the barrel from warping or changing shape under the heat and pressure of firing, maintaining its accuracy over time.
• Meticulous Finishing and QC Are Vital: From contouring the external profile to applying protective finishes and rigorous quality control checks (like bore scoping and air gauging), every detail contributes to the barrel’s final performance and longevity.
• It’s a Complex, Multi-Stage Process: Understanding how is a rifle barrel made reveals it’s far more than just drilling a hole. It’s a sophisticated manufacturing ballet involving numerous specialized machines and skilled craftspeople.

Quick Answers to Common Questions

Why is steel choice so important for a rifle barrel?

The chosen steel must withstand extreme pressures and temperatures. It needs to resist wear and maintain its structure shot after shot to ensure durability and consistent accuracy, which is why specialized alloys like 4140 chrome-moly or 416R stainless steel are used.

What is “rifling” and why is it necessary?

Rifling refers to the helical grooves cut into the inside of the barrel. It’s necessary because these grooves impart a stabilizing spin to the bullet as it travels down the bore, preventing it from tumbling and ensuring it flies accurately to the target.

What are the three main methods used to create rifling in a barrel?

The three main methods are button rifling (pushing a pre-shaped button through the bore), cut rifling (using a single-point cutter to shave grooves), and hammer forging (hammering the barrel around a mandrel with the rifling pattern).

What is “stress relieving” in the context of barrel manufacturing?

Stress relieving is a heat treatment process where the barrel is slowly heated and cooled. This process relaxes internal stresses induced during manufacturing, preventing the barrel from warping or losing accuracy when it heats up during firing.

Why is the “muzzle crown” considered so important for accuracy?

The muzzle crown is the very end of the barrel where the bullet exits. It must be perfectly square and concentric to the bore, without any damage. An uneven crown can cause gas to escape unevenly around the exiting bullet, tipping it and negatively affecting its flight path and accuracy.

Choosing the Right Steel: The Foundation of Accuracy

Every great structure starts with a strong foundation, and for a rifle barrel, that foundation is the steel itself. The type of steel chosen is incredibly important. It needs to withstand extreme pressures and temperatures, resist wear from bullets traveling at high speeds, and maintain its integrity shot after shot. This is not just any steel; it’s specialized, high-grade material.

Types of Steel Used for Barrels

• 4140/4150 Chrome-Moly Steel: These are very common choices. “Chrome-moly” refers to steel alloyed with chromium and molybdenum. These additions boost strength, toughness, and wear resistance. Many military rifles and standard sporting firearms use these types because they offer a great balance of performance and cost.
• 416R Stainless Steel: For many precision and match-grade barrels, 416R stainless steel is the preferred option. The “R” stands for “rifle quality.” It’s a free-machining grade of stainless steel that resists corrosion much better than chrome-moly steels. This corrosion resistance is a huge advantage, especially in humid environments or for shooters who don’t clean their barrels immediately after every range trip. It’s also known for its excellent machinability, which helps in creating very precise rifling.

Initial Inspection and Preparation

Once the specialized steel is selected, it arrives at the barrel manufacturer as solid bars or rods. These aren’t just thrown onto a machine. First, they undergo rigorous inspection. Manufacturers check for any internal flaws, inclusions, or inconsistencies that could compromise the barrel’s integrity or accuracy. Sometimes, they even use ultrasonic testing to peer inside the steel for hidden defects.

After inspection, the raw bar is cut to a length slightly longer than the final barrel will be. This extra length allows for “trimming” later on, where any imperfections at the ends are removed. This careful selection and initial preparation are crucial first steps in understanding how is a rifle barrel made.

Deep Hole Drilling: The Straight Path

This is where the magic truly begins – creating a perfectly straight hole down the center of a solid steel bar. It sounds simple, but drilling a hole several feet long with incredible precision, ensuring it’s dead straight and perfectly centered, is one of the most challenging aspects of making a rifle barrel.

The Gun Drilling Process

Forget your standard drill press; gun drilling is an entirely different beast. It uses a specialized cutting tool called a “gun drill.” This tool is unique because it has an angled cutting edge and a clever internal design that allows coolant to be pumped through the center of the drill. This high-pressure coolant flushes chips back out along a flute on the outside of the drill, keeping the cutting edge cool and clear.

The steel blank itself rotates, often at high speeds, while the stationary gun drill slowly advances into it. This counter-rotation helps ensure the hole stays straight. Imagine trying to drill a very long hole without the drill bit wandering off-center – that’s the challenge gun drilling overcomes. This step is absolutely fundamental to how is a rifle barrel made with accuracy.

Reaming for a Smooth Finish

After the initial drilling, the hole isn’t quite ready. It’s straight, but the surface finish inside might be a bit rough. That’s where reaming comes in. A reamer is a multi-fluted cutting tool designed to enlarge and smooth the drilled hole to its precise final diameter. It shaves off tiny amounts of material, leaving a very smooth and consistent bore.

Honing for Ultimate Straightness and Consistency

For the highest quality barrels, an additional step called honing is performed. Honing uses abrasive stones mounted on a tool that travels back and forth inside the barrel, spinning as it goes. This process further refines the bore’s surface finish, removes any microscopic imperfections, and, crucially, ensures the bore has a perfectly uniform diameter from end to end. This uniformity is vital for consistent bullet performance. This meticulous work truly shows the dedication behind how is a rifle barrel made for peak accuracy.

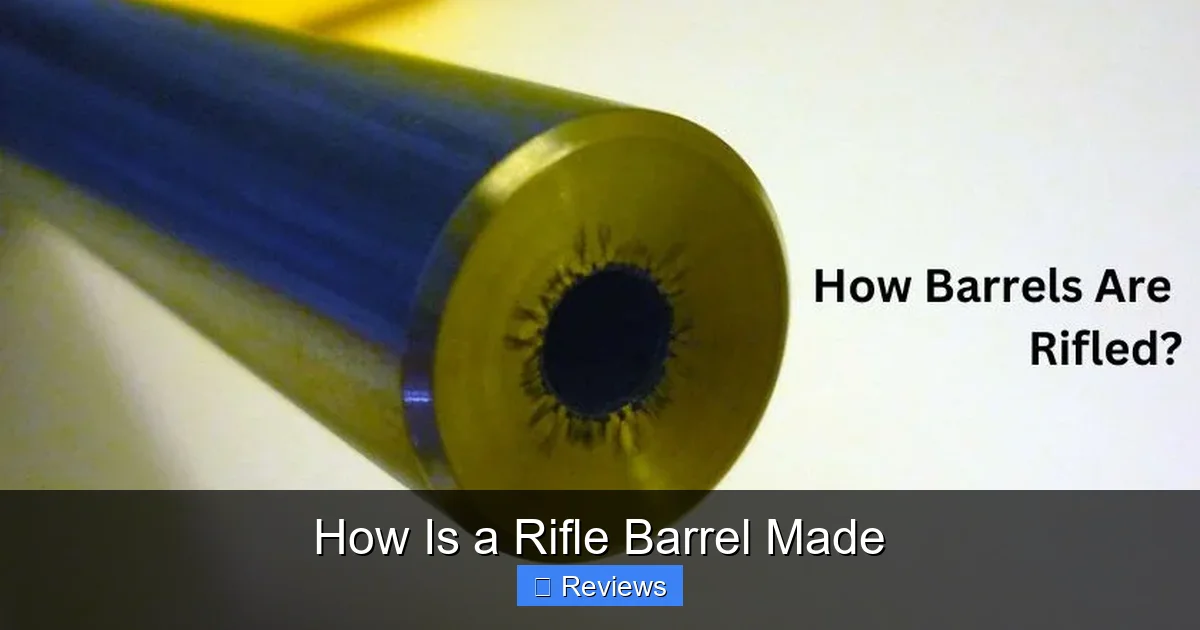

The Art of Rifling: Giving the Bullet Spin

The bore is now straight and smooth, but it still lacks the most critical feature for accuracy: rifling. Rifling refers to the helical (spiral) grooves cut into the inside of the barrel. When a bullet travels through these grooves, it imparts a spin, much like a quarterback throwing a spiral pass. This spin stabilizes the bullet in flight, preventing it from tumbling end-over-end and ensuring it flies true to the target.

There are several distinct methods for creating rifling, each with its own advantages and challenges.

Button Rifling

Button rifling is a very common and efficient method. It involves pulling or pushing a hardened carbide “button” through the reamed and honed barrel bore. This button is slightly larger than the bore diameter and has the inverse shape of the rifling grooves machined into it. As it passes through, it displaces and compresses the steel, forming the lands (the raised sections) and grooves (the recessed sections) of the rifling in one swift pass. A special fixture twists the barrel or the button as it moves, creating the desired spiral twist rate.

• Pros: Fast, cost-effective, produces a very smooth and consistent bore surface with minimal tool marks.
• Cons: The process can induce stress into the barrel steel, which requires a separate stress-relieving step.

Cut Rifling

Cut rifling is a traditional and highly respected method, often considered the gold standard for ultimate precision. It uses a single-point cutting tool, much like a tiny chisel. This cutter makes hundreds, sometimes thousands, of individual passes down the barrel. With each pass, it shaves off a minuscule amount of steel, gradually forming one groove at a time. The tool is incrementally advanced deeper and twisted slightly with each pass until all grooves are fully formed. Then, the process repeats for the next groove, and so on.

• Pros: Extremely precise, induces very little stress into the barrel, allows for great control over twist rate and land/groove dimensions. Favored for custom and benchrest competition barrels.
• Cons: Very slow and labor-intensive, making it more expensive.

Hammer Forging

Hammer forging is a high-volume manufacturing method, often used by large firearms manufacturers. It’s a fascinating process where the barrel blank, after drilling and reaming, is placed over a hardened steel mandrel. This mandrel has the inverse of the rifling pattern machined onto its exterior.

Massive hydraulic hammers then rapidly strike the exterior of the barrel blank from all sides. These impacts literally “forge” the steel down around the mandrel, imprinting the rifling pattern into the bore. The blank is also twisted as it’s hammered to create the helical twist. After forging, the mandrel is removed, revealing the rifled bore.

• Pros: Very fast production, creates a very strong and dense barrel (work-hardens the steel), often leads to long barrel life.
• Cons: Requires very expensive, specialized machinery. Can induce significant stress into the steel, necessitating a robust stress-relieving process. Less common for custom “match” barrels due to its inherent limitations in fine-tuning internal dimensions compared to cut rifling.

Lapping the Bore (Optional but Recommended)

After rifling, especially with button or hammer-forged barrels, some manufacturers perform a process called “lapping.” This involves pushing a lead slug or specialized abrasive paste through the bore. Lapping further refines the internal surface finish, removes any tiny burrs or tight spots, and ensures the bore is incredibly smooth and uniform. A properly lapped bore offers less resistance to the bullet, reduces fouling, and can enhance accuracy. It’s a premium step in how is a rifle barrel made for maximum performance.

Chambering and Contouring: Shaping the Masterpiece

With the bore drilled and rifled, the barrel is starting to look like its final form, but it’s far from finished. Two crucial steps follow: chambering and contouring.

Chambering the Barrel

The chamber is the part of the barrel where the cartridge sits before firing. It must be machined with extreme precision to match the dimensions of the specific cartridge it will fire (e.g., .308 Winchester, 6.5 Creedmoor, .223 Remington). A specialized reamer, designed for the exact cartridge, is used to cut the chamber into the breech end of the barrel.

This is a critical step for both safety and accuracy. A poorly cut chamber can lead to feeding issues, extraction problems, or even dangerous over-pressures if the cartridge doesn’t seat correctly. An accurately cut chamber ensures consistent cartridge seating, which is vital for shot-to-shot consistency and, thus, accuracy. The “headspace” – the distance between the bolt face and a specific point in the chamber – is also set during this process, another crucial factor for safety and reliability.

Contouring the Barrel

Contouring refers to shaping the exterior profile of the barrel. Up until now, it’s likely a relatively thick, heavy cylinder. The contour dictates the barrel’s final weight, balance, and how it dissipates heat. Different contours are chosen for different applications:

• Lightweight/Sporter Contours: Thinner and lighter for hunting rifles where portability is key. They heat up faster but cool quicker.
• Medium/Heavy Contours: Thicker and heavier, these are common on target or precision rifles. The extra mass helps absorb heat, delaying the point at which accuracy might degrade during rapid firing, and reduces muzzle rise.
• Bull Barrels: Very thick, heavy barrels, often found on benchrest rifles. Maximum heat absorption and stiffness for ultimate precision, though not practical for carrying.

The contour is typically machined on a lathe, carefully turning down the steel to the desired profile. This stage in how is a rifle barrel made significantly impacts the firearm’s overall feel and purpose.

Muzzle Crown and Threading

The very end of the barrel, where the bullet exits, is called the “muzzle crown.” This seemingly small detail is incredibly important for accuracy. The crown must be perfectly square and concentric to the bore, without any nicks or burrs. If the bullet exits an uneven crown, gas pressure can escape unevenly around the bullet, tipping it slightly and causing instability. Various types of crowns exist (e.g., recessed, target, 11-degree), but all aim to protect the delicate edge of the rifling.

Many barrels are also threaded at the muzzle. This allows for the attachment of muzzle brakes (to reduce recoil), flash hiders (to reduce visible muzzle flash), or suppressors (silencers). Precision threading ensures these accessories attach securely and concentrically, preventing “baffle strikes” in a suppressor and maintaining accuracy.

Stress Relieving and Finishing Touches: The Final Polish

The barrel is almost complete, but there are a few more critical steps to ensure its longevity, stability, and aesthetic appeal.

Stress Relieving

Earlier processes, especially hammer forging and button rifling, can introduce internal stresses into the steel. These stresses are like tiny, invisible forces trying to pull and twist the barrel. If not relieved, these stresses can cause the barrel to warp or “walk” as it heats up during firing, leading to a loss of accuracy. Stress relieving is essentially a heat treatment process where the barrel is slowly heated to a specific temperature and then slowly cooled. This allows the steel’s molecular structure to relax, evening out those internal stresses. It’s a vital step in ensuring a rifle barrel’s long-term accuracy and stability, making it a key part of how is a rifle barrel made correctly.

External Finishing

Once stress-relieved, the barrel might undergo external finishing treatments for protection and appearance:

• Polishing: The exterior is polished to a smooth finish, removing machining marks.
• Bluing: A chemical process that creates a layer of black iron oxide on the surface, offering corrosion resistance and a classic look for chrome-moly barrels.
• Nitriding/Melonite: A heat-treating process that infuses nitrogen into the steel surface, creating an extremely hard, wear-resistant, and corrosion-resistant finish, both inside and out. It’s a very durable and popular modern finish.
• Cerakote/Other Coatings: Various ceramic-based coatings can be applied in many colors, offering excellent corrosion and abrasion resistance.

Quality Control and Inspection

Before any barrel leaves the factory, it undergoes a final, rigorous quality control inspection. This is where all the precision work is verified:

• Bore Scoping: Using a specialized scope to visually inspect the entire length of the bore for any imperfections, tool marks, or inconsistencies.
• Air Gauging: A highly precise method that uses compressed air to measure the internal diameter of the bore at various points, ensuring perfect uniformity.
• Dimensional Checks: Measuring all external and internal dimensions with micrometers and calipers to ensure they meet specifications.
• Proof Testing: Some barrels, especially those used in complete firearms, might undergo proof testing where they are fired with an intentionally overloaded cartridge to ensure they can withstand extreme pressures safely.

Only barrels that pass these stringent checks are deemed ready. This final phase ensures that every barrel meets the high standards of performance and safety, completing the detailed process of how is a rifle barrel made.

Conclusion

The journey of how is a rifle barrel made is a testament to precision engineering, skilled craftsmanship, and an unwavering commitment to quality. From the careful selection of specialized steel to the meticulous deep-hole drilling, the intricate process of rifling, the precision of chambering, and the critical stress-relieving steps, every stage plays a vital role.

It’s a process that blends ancient metalworking techniques with cutting-edge technology, all aimed at one goal: creating a component that can reliably and accurately launch a projectile at incredible speeds. The next time you pick up a rifle, take a moment to appreciate the unseen complexity and expertise embedded within its barrel. It’s truly a marvel of modern manufacturing, a critical piece that transforms raw materials into an instrument of precision.

Frequently Asked Questions

How long does it typically take to make a rifle barrel?

The manufacturing time for a rifle barrel can vary significantly depending on the method and desired quality. A mass-produced, hammer-forged barrel might be completed relatively quickly, while a custom, hand-lapped, cut-rifled barrel could take many hours or even days of dedicated machine and artisan time.

Which rifling method is considered the most accurate?

While all methods can produce accurate barrels, cut rifling is often considered the most accurate, especially for match-grade and custom barrels. Its slow, precise cutting process induces minimal stress and allows for the finest control over land and groove dimensions, contributing to superior consistency.

Can an old, worn rifle barrel be re-rifled or repaired?

In most cases, an old, worn rifle barrel cannot be practically re-rifled. The process of re-rifling would typically involve enlarging the bore, which would then require using a larger caliber bullet. Sometimes, a severely eroded chamber can be re-cut for a slightly longer version of the same cartridge, a process called “set back and re-chamber.”

What causes a rifle barrel to wear out over time?

Barrel wear is primarily caused by heat, friction, and the abrasive nature of bullet jackets and powder gases. Erosion is most pronounced in the throat area (just ahead of the chamber) due to hot gases. Regular cleaning with abrasive brushes can also contribute to wear if not done carefully.

How does a “match-grade” barrel differ from a standard barrel?

A match-grade barrel undergoes much more stringent manufacturing processes and quality control. This includes using higher quality steel, more precise drilling, often cut rifling or very carefully button-rifled and lapped bores, and meticulous chambering, all aimed at achieving the absolute highest levels of consistency and accuracy.

Is “barrel break-in” necessary for a new rifle barrel?

Barrel break-in is a highly debated topic among shooters. Some believe that firing and cleaning specific sequences smooths out microscopic imperfections in the bore, leading to better accuracy and easier cleaning. Others argue that modern manufacturing techniques produce barrels that don’t require such a process, and that excessive cleaning can do more harm than good.
